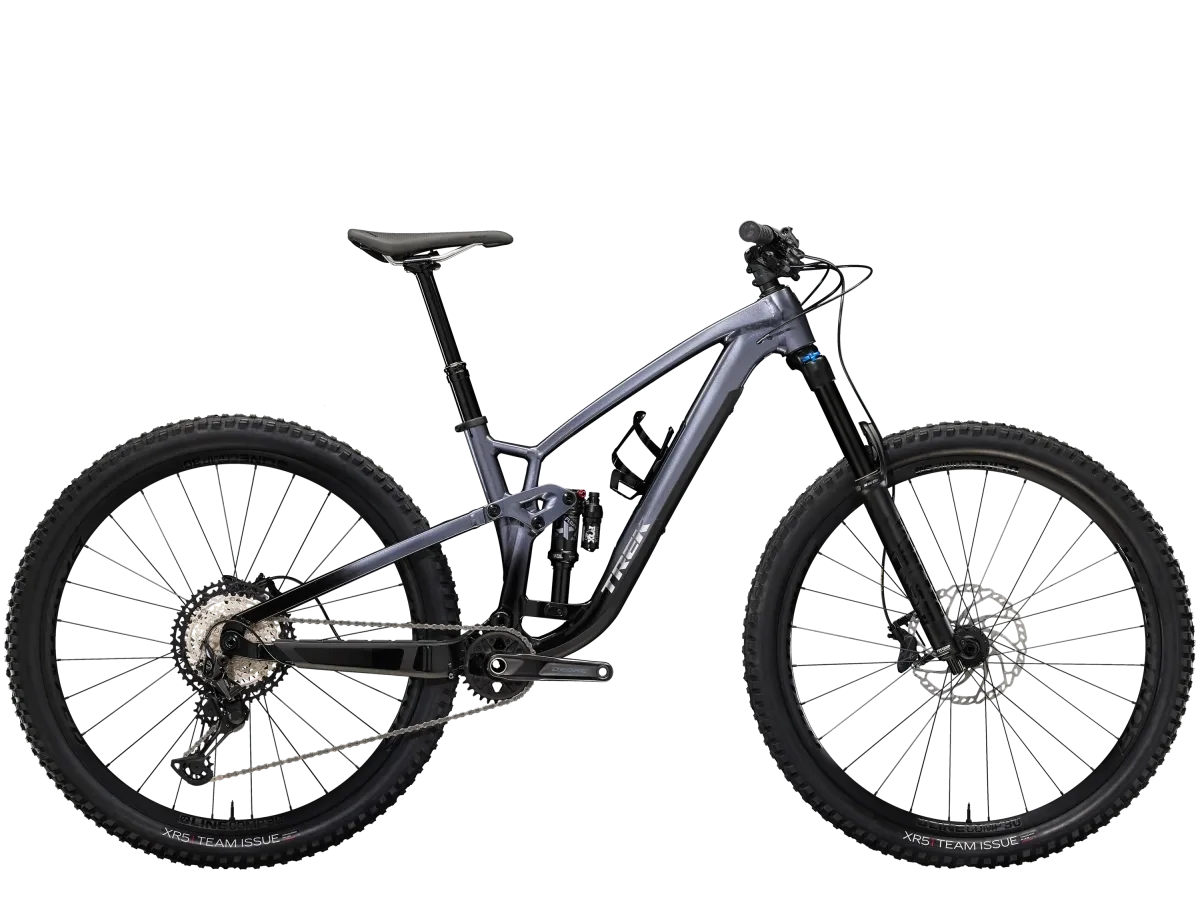

Fuel EX 7 is a do-anything trail machine evolved to eat up singletrack. Upgraded 150mm front and 140mm rear suspension smooth out rough and technical descents, while a lightweight aluminum frame keeps things lively on the climbs. New in-frame storage and adjustable geometry give you all the perks that come with the carbon model, without the price tag. Tubeless wheels, and reliable Shimano SLX 1x12 drivetrain round-out this build for ultimate trail fun.
Specifications
|
Frameset |
|
|
Fork |
RockShox 35 Gold RL, DebonAir spring, Motion Control damper, lockout, tapered steerer, 44mm offset, Boost110, 15mm Maxle Stealth, 150mm travel |
|
Shock |
Fox Performance Float EVOL, 3-position DPS damper, tuned by Trek Suspension Lab, 185mm x 55mm |
|
Wheels |
|
|
Front Wheel |
Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle |
|
Rear Wheel |
Bontrager Line Comp 30, Tubeless Ready, Rapid Drive 54, 6-bolt, Boost148, 12 mm thru axle |
|
Front Hub |
Bontrager alloy, sealed bearing, alloy axle, 6-bolt, Boost110, 15 mm thru axle |
|
Rear Hub |
Bontrager alloy, sealed bearing, alloy axle, 6-bolt, Shimano MicroSpline freehub, Boost148, 12 mm thru axle |
|
Rear Skewer |
Bontrager Switch thru-axle, removable lever |
|
Rim |
Bontrager Line Comp 30, Tubeless Ready |
|
Tire |
Sizes: XS , S |
|
Bontrager XR5 Team Issue, Tubeless Ready, aramid bead, 120 tpi, 27.5x2.50" |
|
|
Sizes: S , M , ML , L , XL , XXL |
|
|
Bontrager XR5 Team Issue, Tubeless Ready, aramid bead, 120 tpi, 29x2.50" |
|
|
Components |
|
|
Saddle |
Bontrager Arvada, steel rails, 138 mm width |
|
Seatpost |
Sizes: XS , S |
|
TranzX JD-YSI-22PLQ, 100 mm travel, internal routing, 34.9 mm, 346 mm length |
|
|
Sizes: M , ML |
|
|
TranzX JD-YSI-22PLQ, 150 mm travel, internal routing, 34.9 mm, 454 mm length |
|
|
Sizes: L , XL , XXL |
|
|
TranzX JD-YSI-22PLQ, 170 mm travel, internal routing, 34.9 mm, 497 mm length |
|
|
Handlebar |
Bontrager Comp, alloy, 31.8 mm, 15 mm rise, 750 mm width |
|
Grips |
Bontrager XR Trail Comp, nylon lock-on |
|
Stem |
Sizes: XS , S |
|
Bontrager alloy, 31.8 mm, Blendr compatible, 7 degree, 35 mm length |
|
|
Sizes: M , ML , L , XL , XXL |
|
|
Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 50mm length |
|
|
Headset |
Integrated cartridge bearing, 1-1/8'' top, 1.5'' bottom, angle adjust cup compatible |
|
Brake |
Sizes: XS , S , M , ML , L , XL , XXL |
|
Shimano 4-piston hydraulic disc, MT4100 lever, MT420 caliper |
|
|
Sizes: XS , S , M , ML , L , XL , XXL |
|
|
Shimano 4-piston hydraulic disc, MT4100 lever, MT420 calliper |
|
|
Brake Rotor |
Sizes: XS , S , M , ML , L , XL , XXL |
|
Shimano RT66, 6-bolt, 180mm |
|
|
Sizes: XS , S , M , ML , L , XL , XXL |
|
|
Shimano RT66, 6-bolt, 203 mm |
|
|
Drivetrain |
|
|
Shifter |
Shimano SLX M7100, 12 speed |
|
Rear Derailleur |
Shimano XT M8100, long cage, 51T max cog |
|
Crank |
Shimano Deore M6120, 30T ring, 55 mm chainline, 170 mm length |
|
Bottom Bracket |
Shimano BB-MT501 BSA |
|
Cassette |
Shimano Deore M6100, 10-51, 12 speed |
|
Chain |
Shimano Deore M6100, 12 speed |
|
Weight |
|
|
Weight |
M - 15.97 kg / 35.21 lbs (with TLR sealant, no tubes) |
|
Weight limit |
This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg). |
