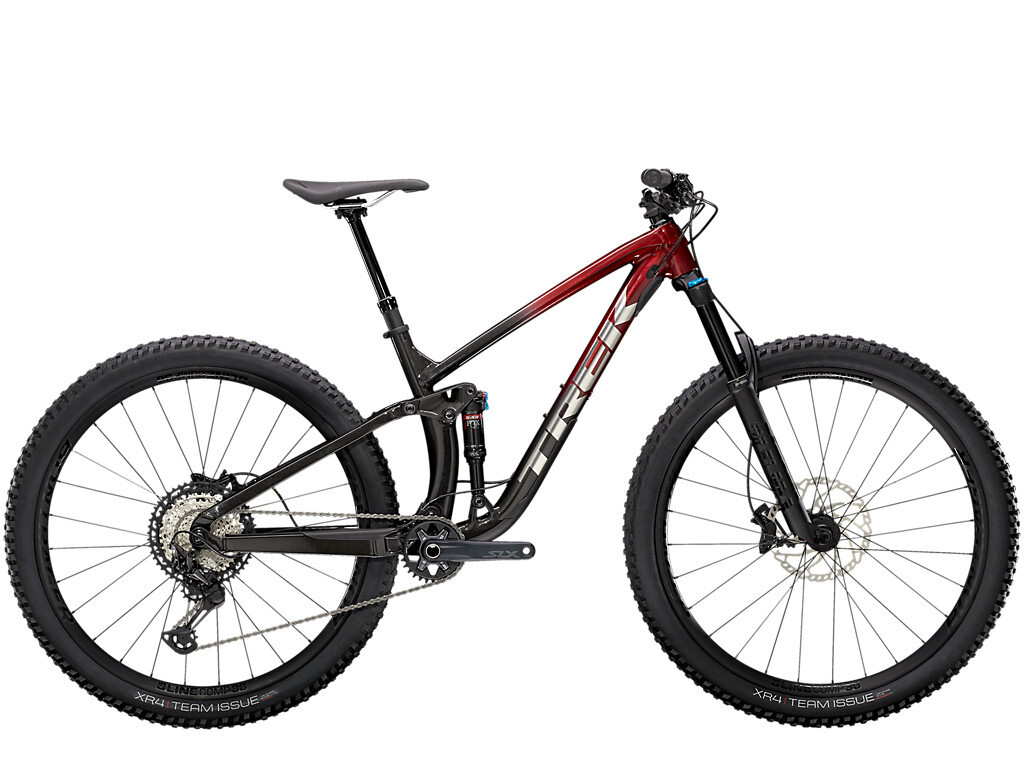

Fuel EX 8 is the ideal trail bike for riders who want a versatile full suspension ripper that makes soul-crushing climbs less painful, but can also huck rowdy trails. It hits the sweet spot of value and performance in our mountain bike lineup by combining high-end parts with a stout but light alloy frame.
specifications
|
Frameset |
|
|
Frame |
Alpha Platinum Aluminium, tapered head tube, Knock Block, Control Freak internal routing, downtube guard, ISCG 05, magnesium rocker link, Mino Link, ABP, Boost148, 130 mm travel |
|
Fork |
Fox Rhythm 34, Float EVOL air spring, GRIP damper, tapered steerer, 44 mm offset, Boost110, 15mm Kabolt axle, 140mm travel |
|
*Shock |
Size: XS , S |
|
Fox Performance Float EVOL, 3-position RE:aktiv damper, tuned by Trek Suspension Lab, 210 mm x 52.5 mm |
|
|
Size: S , M , ML , L , XL , XXL |
|
|
Fox Performance Float EVOL, 3-position RE:aktiv damper, tuned by Trek Suspension Lab, 210 mm x 55 mm |
|
|
Max compatible fork travel |
150mm (561mm axle-to-crown) |
|
Wheels |
|
|
Wheel front |
Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle |
|
Wheel rear |
Bontrager Line Comp 30, Tubeless Ready, Rapid Drive 54, 6-bolt, Boost148, 12 mm thru axle |
|
Skewer rear |
Bontrager Switch thru-axle, removable lever |
|
Rim |
Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle |
|
*Tire |
Size: XS , S |
|
Bontrager XR5 Team Issue, Tubeless Ready, aramid bead, 120 tpi, 27.5x2.50" |
|
|
Size: S , M , ML , L , XL , XXL |
|
|
Bontrager XR5 Team Issue, Tubeless Ready, aramid bead, 120 tpi, 29x2.50" |
|
|
Tire part |
Bontrager TLR sealant, 180 ml/6 oz |
|
Rim strip |
Bontrager TLR |
|
Max tire size |
Frame: 29x2.60" Fork: See manufacturer |
|
Drivetrain |
|
|
Shifter |
Shimano XT M8100, 12-speed |
|
Rear derailleur |
Shimano XT M8100, long cage, 51T max cog |
|
*Crank |
Size: XS , S , M , ML , L |
|
Shimano SLX M7100, 30T alloy ring, Boost, 170 mm length |
|
|
Size: XL , XXL |
|
|
Shimano SLX M7100, 30T alloy ring, Boost, 175 mm length |
|
|
Bottom bracket |
Shimano MT500, 92 mm, PressFit |
|
Cassette |
Shimano XT M8100, 10-51, 12-speed |
|
Chain |
Shimano SLX M7100, 12-speed |
|
Max chainring size |
34T |
|
Components |
|
|
Saddle |
Bontrager Arvada, hollow chromoly rails, 138 mm width |
|
*Seatpost |
Size: XS , S |
|
Bontrager Line Dropper, 100 mm travel, internal routing, 31.6 mm, 345 mm length |
|
|
Size: M , ML , L , XL , XXL |
|
|
Bontrager Line Dropper, 150mm travel, internal routing, 31.6 mm, 440mm length |
|
|
*Handlebar |
Size: XS , S |
|
Bontrager Line, alloy, 35 mm, 27.5 mm rise, 750 mm width |
|
|
Size: M , ML , L , XL , XXL |
|
|
Bontrager Line, alloy, 35 mm, 27.5 mm rise, 780 mm width |
|
|
Grips |
Bontrager XR Trail Elite, nylon lock-on |
|
*Stem |
Size: XS , S |
|
Bontrager Elite, 35 mm, 0-degree, 35 mm length |
|
|
Size: M , ML , L , XL , XXL |
|
|
Bontrager Elite, 35 mm, 0-degree, 45 mm length |
|
|
Headset |
Knock Block Integrated, 58-degree radius, cartridge bearing, 1-1/8" top, 1.5" bottom |
|
*Brake |
Size: XS , S , M , ML , L , XL , XXL |
|
Shimano hydraulic disc, MT4100 lever, MT420 4-piston caliper |
|
|
Size: XS , S , M , ML , L , XL , XXL |
|
|
Shimano 4-piston hydraulic disc, MT4100 lever, MT420 caliper |
|
|
*Brake rotor |
Size: XS , S , M , ML , L , XL , XXL |
|
Shimano RT66, 6-bolt, 180mm |
|
|
Size: M , ML , L , XL , XXL |
|
|
Shimano RT66, 6-bolt, 203 mm |
|
|
Weight |
|
|
Weight |
M - 30.56 lbs / 13.86 kg (with TLR sealant, no tubes) |
