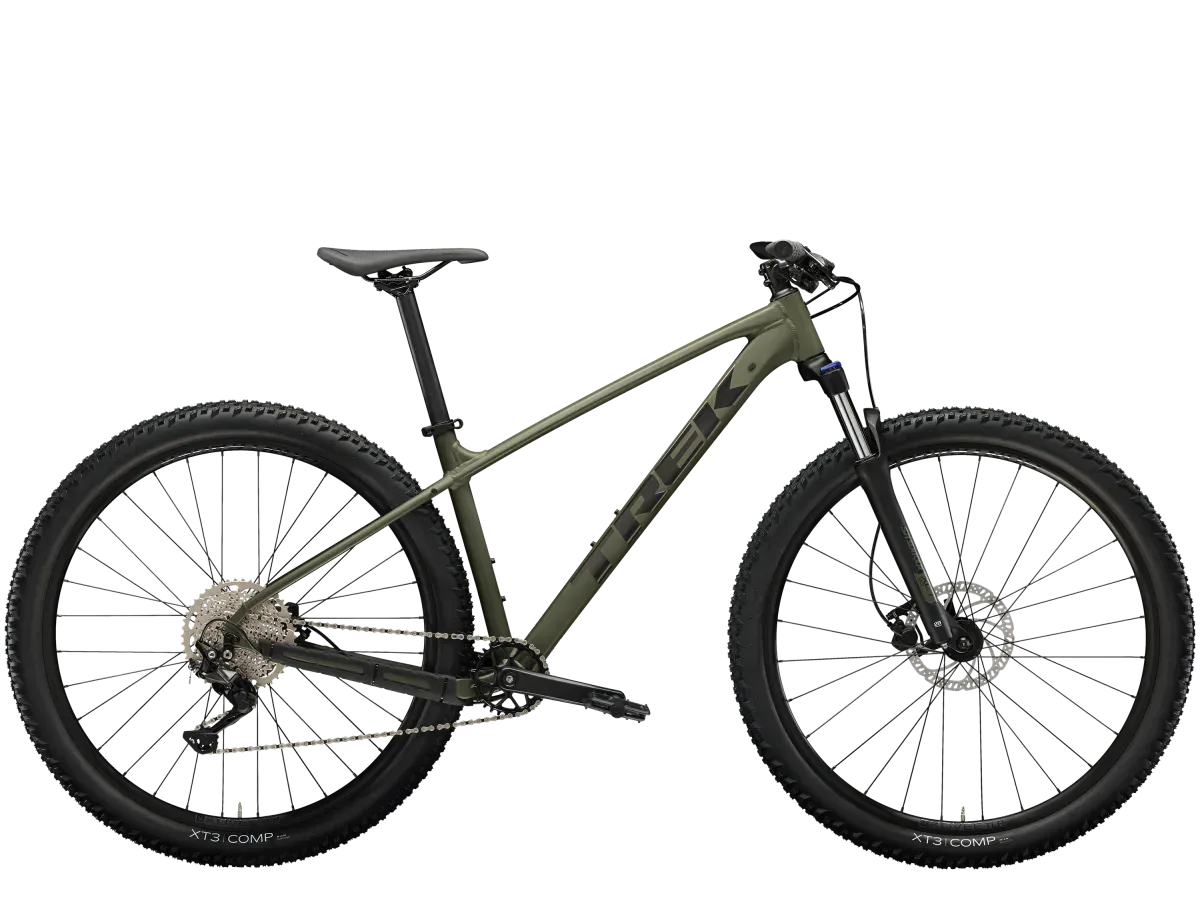

Marlin 6 is the perfect ride for progressing your skills on the trails. Its updated slacker frame geometry makes it easier to control on descents while the suspension fork takes the edge off bumpy trails. Integrated rack and kickstand mounts make it easy to add accessories to this versatile steed.

It's right for you if...

You want a trail bike that's dialed for building confidence on the dirt, and versatile enough for commuting to work or schoo

The tech you get

A lightweight aluminum frame with modern trail riding geometry and internal routing that keeps cables protected and keep the bike looking sleek. A front suspension fork that cushions rocks, roots, and bumps in the trail, 10-speed fuss-free Shimano Deore shifting, and the serious stopping power of hydraulic disc brakes.

The final word

Marlin 6 is an ideal trail bike for riders who want to progress on the trail, and want a bike that can keep them rolling off of the trail, too.

Why you'll love it

You get real-deal modern mountain bike geometry that keeps handling confident when you're on singletrack, but it's versatile enough for use on roads and bike paths, too
Fender mounts make it easy to accessorize, so your mountain bike can double as a rugged commuter
The new Thru-Skew system is safer, simpler, and stronger, plus it makes removing the rear wheel for flat fixes a cinch.
Internal routing makes it easy to add a dropper post that lets you lower you saddle on the fly for more confident descending
Marlin models in sizes XXS and XS have a curved top tube and lower standover height that makes it easier for smaller riders to mount and dismount

Here is a detailed summary of the bike's specifications and sizes:

Frame

XXS, XS: Alpha Silver Aluminum, curved top tube, internal derailleur & dropper post routing, rack and kickstand mount, 135x5mm ThruSkew.
S, M, ML, L, XL, XXL: Alpha Silver Aluminum, internal derailleur & dropper post routing, rack and kickstand mount, 135x5mm ThruSkew.

Fork

XXS: SR Suntour XCM 30, 42mm offset for 26" wheel, 100mm travel.
XS, S: SR Suntour XCT 30, 42mm offset for 27.5" wheel, 100mm travel.
M, ML, L, XL, XXL: SR Suntour XCT 30, 46mm offset for 29" wheel, 100mm travel.
Max compatible travel: 120mm (XXS: 80mm).

Hubs

Front: Formula DC-20, alloy, 6-bolt, 100mm ThruSkew.
Rear: Formula DC-22, alloy, Shimano 8/9/10 freehub, 135x5mm QR (across all sizes).

Wheels and Tires

Rims: Bontrager Kovee, double-wall, Tubeless Ready, 28-hole, 23mm width.
Tires:
- XXS: 26x2.35" Bontrager XT3 Comp.
- XS, S: 27.5x2.40" Bontrager XT3 Comp.
- M, ML, L, XL, XXL: 29x2.40" Bontrager XT3 Comp.
Max tire size:
- Frame: XXS: 26x2.40", XS & S: 27.5x2.40", others: 29x2.40".

Drivetrain

Shifter: Shimano Deore M4100, 10-speed.
Rear Derailleur: Shimano Deore M5120, long cage.
Crankset:
- XXS: 160mm, 30T steel narrow-wide.
- XS, S, M, ML: 170mm.
- L, XL, XXL: 175mm.
Cassette: Shimano Deore M4100, 11-46T, 10-speed.
Chain: KMC X10.

Brakes

Tektro HD-M275 hydraulic disc brakes.
Rotor sizes: Frame max: 180mm (XXS: 160mm).

Cockpit

Handlebar:
- XXS, XS: 690mm width, 5mm rise.
- S: 720mm width, 15mm rise.
- Others: 750mm width, 15mm rise.
Stem:
- XXS, XS, S: 35mm length.
- M, ML, L: 50mm length.
- XL: 60mm. XXL: 70mm.

Seatpost & Saddle

Seatpost:
- XXS: 300mm.
- XS, S, M: 330mm.
- Others: 400mm.
Saddle: Bontrager Arvada, steel rails, 138mm width.

Weight

Medium: 14.80 kg (32.63 lbs).
