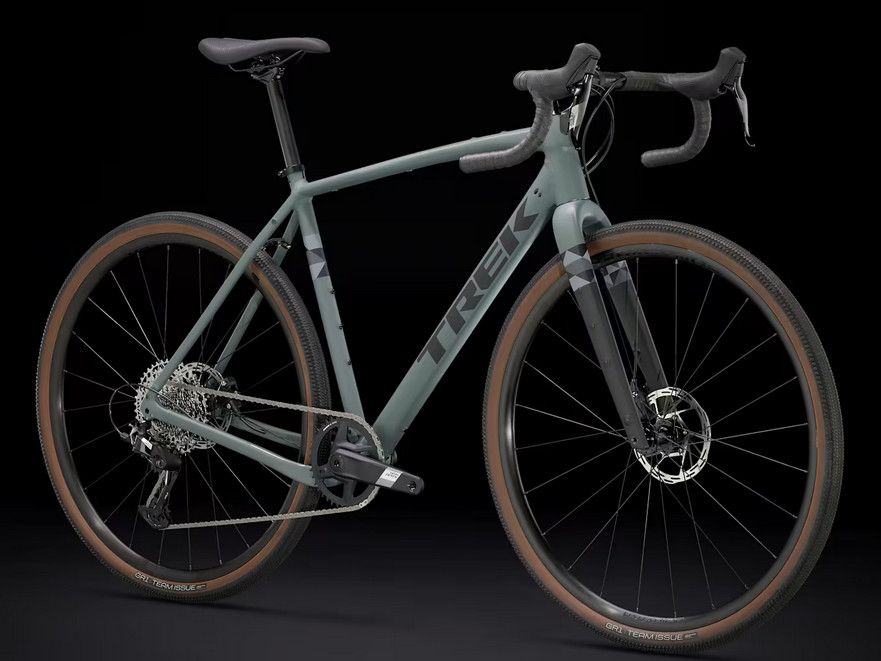

2024-2025 Trek Checkpoint ALR 5 -
Product Details
Brand: TREK
UPC: 768682519462
Checkpoint ALR 5 is an adventure-ready alloy gravel bike that's kitted with quality parts for long, rugged, miles on anything from chunky gravel to smooth pavement. A wealth of features like loads of mounts for bags and racks, and a SRAM Apex 1x12 drivetrain makes this Checkpoint ready to customize for your next adventure.
| Frame with Fork | 300 Series Alpha Aluminum, tapered head tube, Internal cable routing, 3S chain keeper, T47 BB, rack and fender mounts, integrated frame bag mounts, flat mount disc, 142x12mm thru axle |
|---|---|
| Fork | Checkpoint, full carbon, tapered carbon steerer, rack mounts, mudguard mounts, flat-mount disc, 12x100 mm thru axle |
| Weight | 56 - 9.71 kg / 21.41 lbs (with TLR sealant, no tubes) |
|---|---|
| Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 275 pounds (125 kg). |
| Shifter | SRAM Apex, 12 speed |
|---|---|
| Rear derailleur | SRAM Apex XPLR, 44T max cog |
| *Crank | Size: 49 SRAM Apex 1, 40T, DUB Wide, 165mm length |
| Size: 52 SRAM Apex 1, 40T, DUB Wide, 170mm length |
|
| Size: 54, 56 SRAM Apex 1, 40T, DUB Wide, 172.5mm length |
|
| Size: 58, 61 SRAM Apex 1, 40T, DUB Wide, 175mm length |
|
| Bottom bracket | SRAM DUB Wide, T47 threaded, internal bearing |
| Cassette | SRAM XPLR PG-1231, 11-44, 12 speed |
| Chain | SRAM Apex, 12 speed |
| Max chainring size | 1x: 44T (SRAM), 50T (Shimano), 2x: 50/34 |
| Hub front | Bontrager alloy, sealed bearing, centerlock disc, 100x12mm thru axle |
|---|---|
| Skewer front | Bontrager Switch thru axle, removable lever |
| Hub rear | Bontrager alloy, sealed bearing, CenterLock disc, Shimano 11-speed freehub, 142x12 mm thru axle |
| Skewer rear | Bontrager Switch thru axle, removable lever |
| Rim | Bontrager Paradigm, Tubeless Ready, 24-hole, 21mm width, Presta valve |
| Spokes | 14g stainless steel, black |
| Tire | Bontrager GR1 Team Issue, Tubeless Ready, Inner Strength casing, aramid bead, 120 tpi, 700x40mm |
| Tire part | Bontrager TLR sealant, 180 ml/6 oz |
| Rim strip | Bontrager TLR |
| Max tire size | See service manual |
| *Saddle | Size: 49, 52 Bontrager P3 Verse Comp, steel rails, 155 mm width |
|---|---|
| Size: 54, 56, 58, 61 Bontrager P3 Verse Comp, steel rails, 145 mm width |
|
| Seatpost | Bontrager alloy, 27.2mm, 12mm offset, 330mm length |
| *Handlebar | Size: 49 Bontrager Elite Gravel, 38cm width |
| Size: 52 Bontrager Elite Gravel, 40cm width |
|
| Size: 54, 56 Bontrager Elite Gravel, 42cm width |
|
| Size: 58, 61 Bontrager Elite Gravel, 44cm width |
|
| Handlebar tape | Bontrager Supertack Perf tape |
| *Stem | Size: 49 Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 70 mm length |
| Size: 52, 54 Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 80 mm length |
|
| Size: 56, 58 Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 90 mm length |
|
| Size: 61 Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 100 mm length |
|
| Brake | SRAM Apex hydraulic disc, flat mount |
| Brake rotor | SRAM Paceline, rounded, centerlock, 160mm |
| Brake lever | SRAM Apex, 12 speed |
| Rotor size | Max brake rotor sizes: 160mm front & rear |
