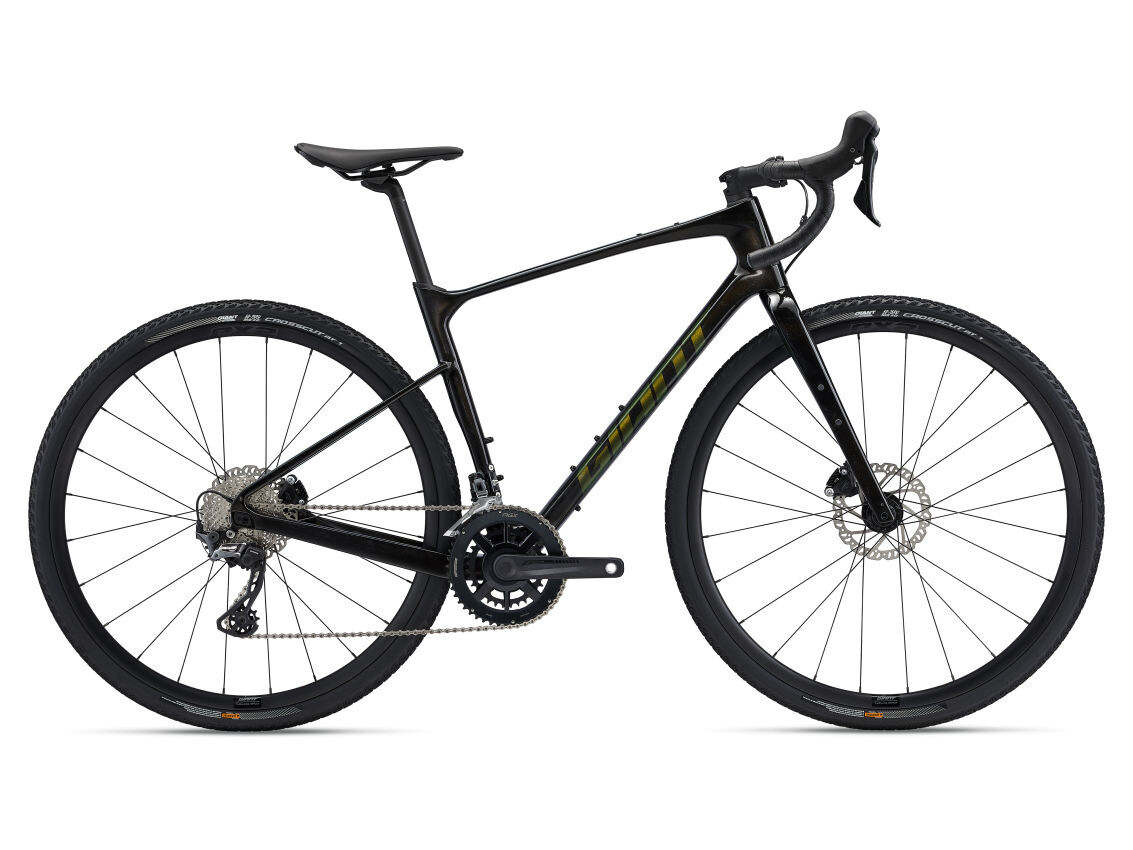

2024 Giant Revolt Advanced 2 -

Product Details

Brand: Giant

FAST GRAVEL, ROUGH GRAVEL, PAVEMENT OR DIRT. HOWEVER YOU CHOOSE TO ROLL, THIS BIKE DOES IT ALL. A NEW COMPOSITE FRAMESET AND ADJUSTABLE WHEELBASE MAKE IT MORE CAPABLE THAN EVER.

Specifications

Sizes	XS, S, M, M/L, L, XL
Colours	Golden Haze, Panther
Frameset
Frame	Advanced-grade composite, 12x142mm thru-axle, disc, flip chip dropout
Fork	Advanced-grade composite, full-composite OverDrive steerer, 12mm thru-axle, disc
Shock	N/A
Cockpit
Handlebar	Giant Contact XR D-Fuse, 31.8mm XS:42cm, S:42cm, M:44cm, M/L:44cm, L:46cm, XL:46cm
Grips	Stratus Lite 3.0
Stem	Giant Contact, 8-degree XS:50mm, S:60mm, M:70mm, M/L:80mm, L:80mm, XL:90mm
Seatpost	Giant D-Fuse, composite, 14mm offset
Saddle	Giant Approach
Pedals	N/A
Drivetrain
Shifters	Shimano GRX RX-610, 2x12
Front Derailleur	Shimano GRX RX-820
Rear Derailleur	Shimano GRX RX-820
Cassette	Shimano CS-HG710, 12-speed, 11x36
Chain	KMC X12L-1
Crankset	FSA Omega Modular AGX+, 32/48 XS:170mm, S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm
Bottom Bracket	FSA BB-AL86 or Shimano Press Fit
Brakes
Brakes	Shimano GRX RX-410 hydraulic, Giant MPH rotors [F]160mm, [R]160mm
Brake Levers	Shimano GRX RX-610 hydraulic
Wheels
Rims	Giant P-X2 Disc wheelset, alloy
Hubs	Giant alloy, 12mm thru-axle
Spokes	Sapim
Tires	Maxxis Rambler/Ravager, 700x40c, tubeless
Extras	tubeless prepared, 53mm max tire size in "long" flip chip position, 45mm max tire size in "short" flip chip position
