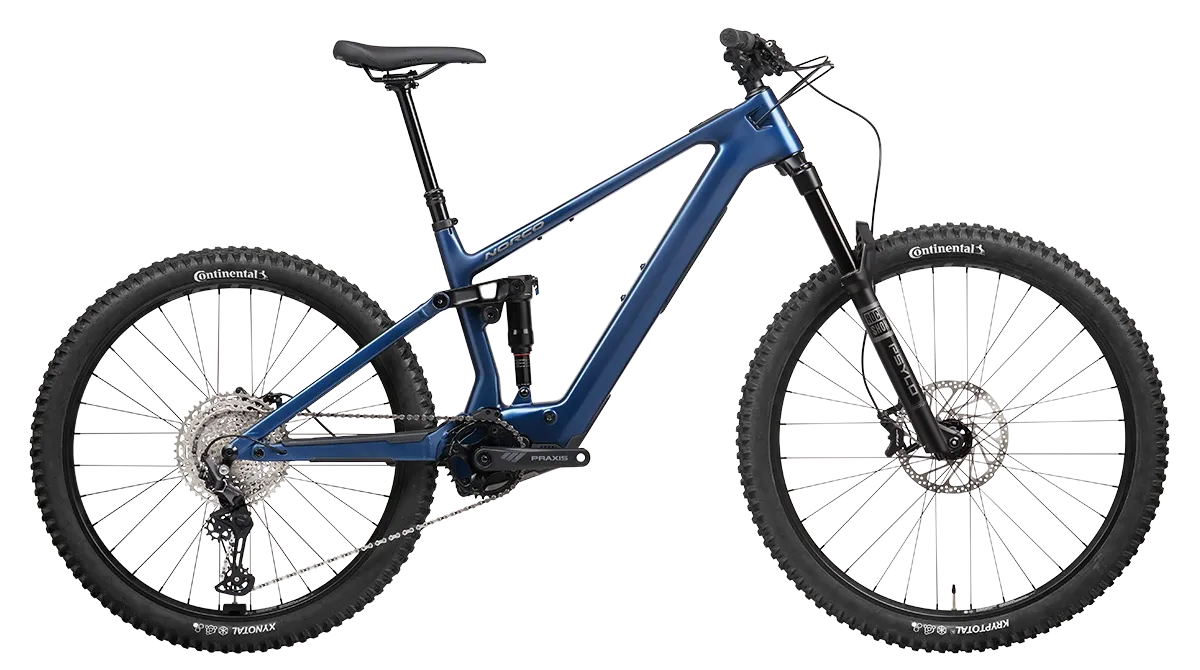

Get more rides in and make the most of every minute of the lightweight Fluid VLT C3 140. Featuring the next-level Bosch Performance Line SX drive system, and 140mm of precision-tuned suspension, integrating mixed wheels across all 5 frame sizes for optimum weight balance & handling.

Light weight capability and full speed fun.

With 140mm of custom-tuned, precision-engineered suspension travel and 150mm fork travel, the Fluid VLT C3 140 delivers an improved ride feel with the latest in integrated e-mtb technology from Bosch.

DETAILS

• The latest in integrated e‑MTB technology from Bosch.
• Built to Accommodate Rider Preference.
• Bosch Performance Line SX 55 Nm with 400Wh battery.
• Control your assist and range with the Bosch eBike Flow App
• Reactive, playful, ride performance.
• Uncompromising components engineered and spec'd for light weight capability.
• Set up like a Pro – features the Ride Aligned™ Setup Guide.
• No Other Way Limited Lifetime Warranty.

SPECIFICATIONS

FRAMESET

FRAME : Fluid VLT Carbon Front Triangle, Alloy SS and CS, 27.5" Wheel, 140mm Travel, UDH, Hangerless Interface Compatible, Ride Aligned™
FORK : RockShox Psylo Gold RC, 150mm Travel, 44mm Offset
SHOCK : RockShox Deluxe Select+, 185x55mm Trunion

DRIVETRAIN

REAR SHIFTER : Shimano Deore SL-M6100
REAR DERAILLEUR : Shimano Deore RD-M6100
CRANKSET : Praxis Alloy HD eMTB, 165mm
CASSETTE : Shimano Deore CS-M6100-12 11-51T, 12 Speed
CHAIN : KMC e12

BRAKES

FRONT BRAKE : TRP Slate EVO, 4 Piston
FRONT ROTOR : TRP TR203, 203mm, 2.3mm Thick
REAR BRAKE : TRP Slate EVO, 4 Piston
REAR ROTOR : TRP TR180, 180mm, 2.3mm Thick
BRAKE LEVERS : TRP Slate EVO for Shimano I-Spec

COCKPIT

HANDLEBAR: 6061 Butted Alloy, 800mm, 25mm Rise
STEM: 6061 Alloy 40mm Length, 35mm Clamp
SEATPOST : TranzX YSI34 Dropper, 125mm (S1), 150mm (S2), 170mm (S3), 200mm (S4, S5)
HEADSET : Sealed ZS
HEADSET SPACER :Carbon, 2x10mm, 1x5mm
SADDLE : WTB Volt Med
GRIPS : WTB Wavelength

WHEELS

FRONT HUB : Bear Pawls 110x15mm Boost, 6 Bolt
REAR HUB : Bear Pawls, 6 Pawl 3 Sealed Bearing, Steel Driver Body, 6-Bolt, Micro Spline
RIMS: WTB ST Tough 32H, 27.5" Rear, 29" Front, 30mm ID
FRONT TIRE : Continental Kryptotal 29" x 2.4" Trail
REAR TIRE : Continental Xynotal 27.5" x 2.4" Trail

E-BIKE

DRIVE UNIT : Bosch Performance Line SX 55Nm
BATTERY : Bosch CPT 400Wh

WEIGHT

WEIGHT : 20.3 kg (44.7 lbs)
WEIGHT SIZE : S3
