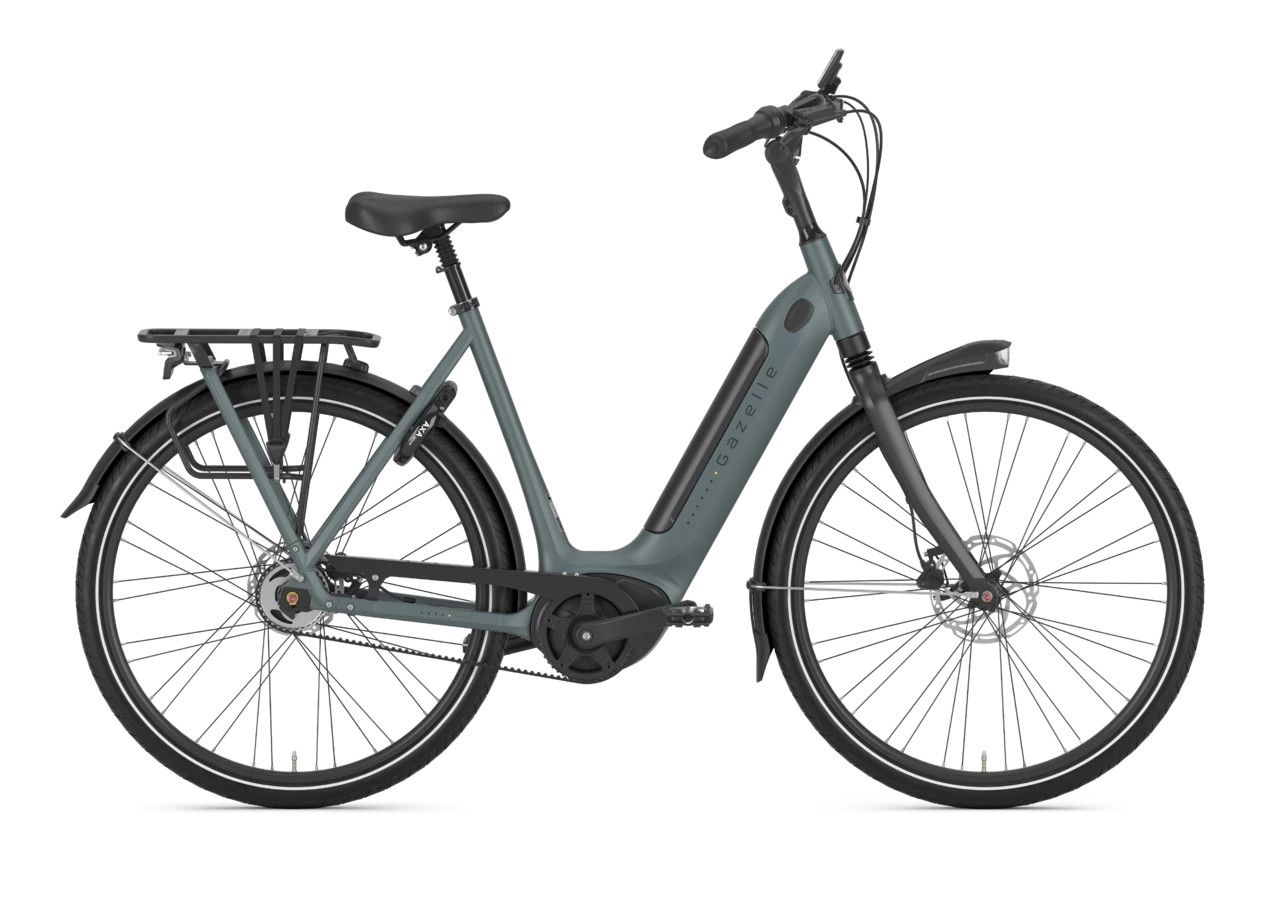

Gazelle Arroyo C5 Elite -

C$5 399.00
New!
Taille
Couleur
In stock
Save this product for later
Share this product with your friends
Gazelle Arroyo C5 Elite -
Product Details
Brand: Gazelle
UPC: 8717231362877

Touring is a pleasure with the Gazelle Arroyo C5 HMB Elite. You can get on and off easily, sit upright comfortably, and have a good view of your surroundings. Thanks to the powerful motor, you can stop and go wherever you want.

Comfort and sport in one bike

alt

No chain, but a durable belt

alt

Leather handlebar grips and a gel seat add a luxurious touch

alt

Powerful, hydraulic disc brakes

alt

No hill is too steep for the powerful motor

Powerful, mid-drive motor

The Arroyo C5 HMB Elite features a powerful Bosch Performance Line mid-drive motor. Neither headwinds nor hills are a problem with this bike. The battery is integrated into the frame, lowering the center of gravity to improve stability, while providing a sleek look.

Belt drive: quiet and low maintenance

A key feature of the Arroyo C5 HMB Elite is the Gates belt drive. Belt drives have several advantages over chain drives including durability and being low-maintenance. They don't require lubrication and last 3-5 times longer. Additionally, shifting with a belt drive is especially smooth and quiet.

Luxurious finish, more comfort

Details make the difference. The Arroyo C5 HMB Elite has delightful details including leather handlebar grips that fit nicely in the hand and also give the ebike a luxurious touch. The gel seat also improves the comfort level and with attractive appearance. This saddle absorbs bumps and vibrations, easing the impact of the road, even on longer rides.

Powerful and controlled braking

If you're descending or riding in busy traffic, then you'll want to be able to brake safely without thinking about it. Hydraulic disc brakes offer braking power and precision, so you can slow down in a controlled manner at any time — even when it's raining.

Discover new places with Bosch's quiet yet powerful motor

Bosch Smart System Performance Line

The Bosch Performance Line gives you everything your cyclist's heart desires. Smooth and powerful assistance that will never let you down. With 75 Nm torque you can handle any terrain. Highly recommended for the demanding cyclist.

Efficient, integrated power source

Bosch's lithium-ion batteries are among the most advanced on the market. Their intelligent battery management system guarantees a long life, while the efficient energy control optimizes your bike's range. With the integrated 500 Wh battery, you'll always have enough range. The battery is secured in the frame with a lock. You can easily remove it from the bike with a key that also works on the café lock. Convenient, as you can charge the battery either on or off the bike.


Intuvia 100

The Bosch Intuvia 100 display is detachable and is wirelessly connected to your bike. The display is easy to read in all conditions. All of your important ride data is easily accessible via the LED Remote at the end of the handlebar. You don't have to worry about your display's battery running out of charge. All critical settings can be controlled via the LED Remote at the end of the handlebar without having to reach for the display.


Specifications of Arroyo C5 Elite

Highlights

Color
Anthracite grey gloss, petrol blue gloss
Fork suspension
Mono Integrated

General

Bike weight description
Excl. battery
Weight (lbs)
53.8
Color
Anthracite grey gloss, petrol blue gloss
Front Light Integrated
Yes
Sitting Position
Upright

Frame & Fork

Frame

Frame description
Stable, lightweight hydro-formed aluminium frame with 68.5° headset angle and 69.5° saddle tube angle for relaxed and comfortable riding. This is a low-step and spacious frame, single tube and lovely integrated cables.
Frame material
Aluminum
Cockpit Cable Integration
Yes
Frame shape
Low-Step
Frame Size CM
46, 53, 57

Fork

Fork description
Aluminium, springing in headset, lightweight
Fork Material
Aluminum
Fork suspension
Mono Integrated

Wheels & Tires

Wheels

Front wheel
46, Gates
Rear wheel
34, Gates
Front rim
Rodi Viper, Double-walled aluminium for extra strong and efficient cycling performance
Rear rim
Rodi Viper, Double-walled aluminium for extra strong and efficient cycling performance
Front hub
Shimano
Rear hub
Shimano Nexus 5, coasterbrake
WheelSize Front
28"

Tires

Wheels Tire Front Etrto
47-622
Front tire
Schwalbe Energizer Active Plus
Rear tire
Schwalbe Energizer Active Plus
Wheels Tire Front Description
Schwalbe Energizer Active Plus

Brake & transmission

Number of gears

Brand shifters
Shimano
Front chainwheel
46
Gear Type
Hub
Number of gears
5

Drivetrain

Drivetrain
Belt

Brakes

Front Brake Type
Hydraulic disc brake
Brake sytem code
S5
Front Brake Brand
Tektro
Primary Rear Brake Model
HD-T280
Front brake
Tektro HD-T280, 180 mm
Rear brake
Tektro HD-T280, 160 mm
Rear Brake Lever
Tektro

Handlebar & Seat

Handlebar

Handlebar
Gazelle Aero leather, Luxury leather handlebar grips for a sophisticated feel and extra comfort
Stem adjustable
Yes
Cockpit Handlebar Grip Brand
Gazelle

Saddle

Saddle
Selle Royal Essenza Plus

Lighting

Front light

Front light
Gazelle Fendervision
Front Light Energy Source
Battery
Front Light Lux
50

Rear light

Rear Light Energy Source
Battery
Rear light
Spanninga Brasa

E-bike technology

Engine

Motor
Bosch Smart System Performance Line
System Model
Performance Line
Ebike System Brand
Bosch Smart System
Ebike Engine Position
Mid
Ebike Max Speed
32 km/h
Engine Max Torque (Nm)
75Nm

Battery

Charger
Bosch
Ebike Battery Charger Description
4 Ah
Battery Position
Integrated in the frame

Display

Display
Bosch Intuvia 100
Display Removeable
Yes
Ebike Walk Assist
Yes
Display Type
LCDc

Service

Garantie

Frame warranty
10 year's warranty
Fork warranty
5 year's warranty
Paint warranty
5 year's warranty
Other parts warranty
2 year's warranty
Battery warranty
2 year's warranty
Motor warranty
2 year's warranty
Display warranty
2 year's warranty

Other

Lock

Lock
Axa
Lock brand
Axa
ART classification
ART**

Other

Kickstand
Ursus Mooi
Coat protector
Yes

Carrier

Rear carrier description
Aluminum MIK HD system carrier
Carrier MIK Profile
Yes
Rear carrier max load (lbs)
59
Rear carrier
Yes

The specifications of each Gazelle are drawn up with the greatest of care. However, we may, for example due to scarcity, temporarily replace a part with another, at least equivalent, part. We hope for your understanding in this matter.
