The Gazelle Arroyo C8 HMB Elite offers a joyful introduction to the best of both bike

worlds: an easy, elegant Dutch-style bike and a masterfully designed machine that

beautifully integrates with Bosch e-bike technology. Featuring an approachable low-

step frame, relaxed geometry, and best-in-class components, the Arroyo C8 is a capable

all-arounder for trips of any type or duration, thanks to a powerful motor, high capacity

battery, and thoughtful accessories.

• Robust assistance thanks to a Bosch Active Line Plus motor with 50 Nm of torque (20

mph) and 500 Wh integrated in-tube battery

• Lightweight suspension front fork, suspension seat post, and wide, puncture-resistant

tires ensure comfort on all road surfaces

• Durable 8-speed Shimano Nexus hub offers smooth shifting

• An iconic design reinvented for modern life on two wheels

DESCRIPTION 8-speed Shimano Nexus gears with Tektro HD-T280

hydraulic disc brakes Weight (kg) 23,4 (excl. battery) Lbs 51.6 (excl. battery)

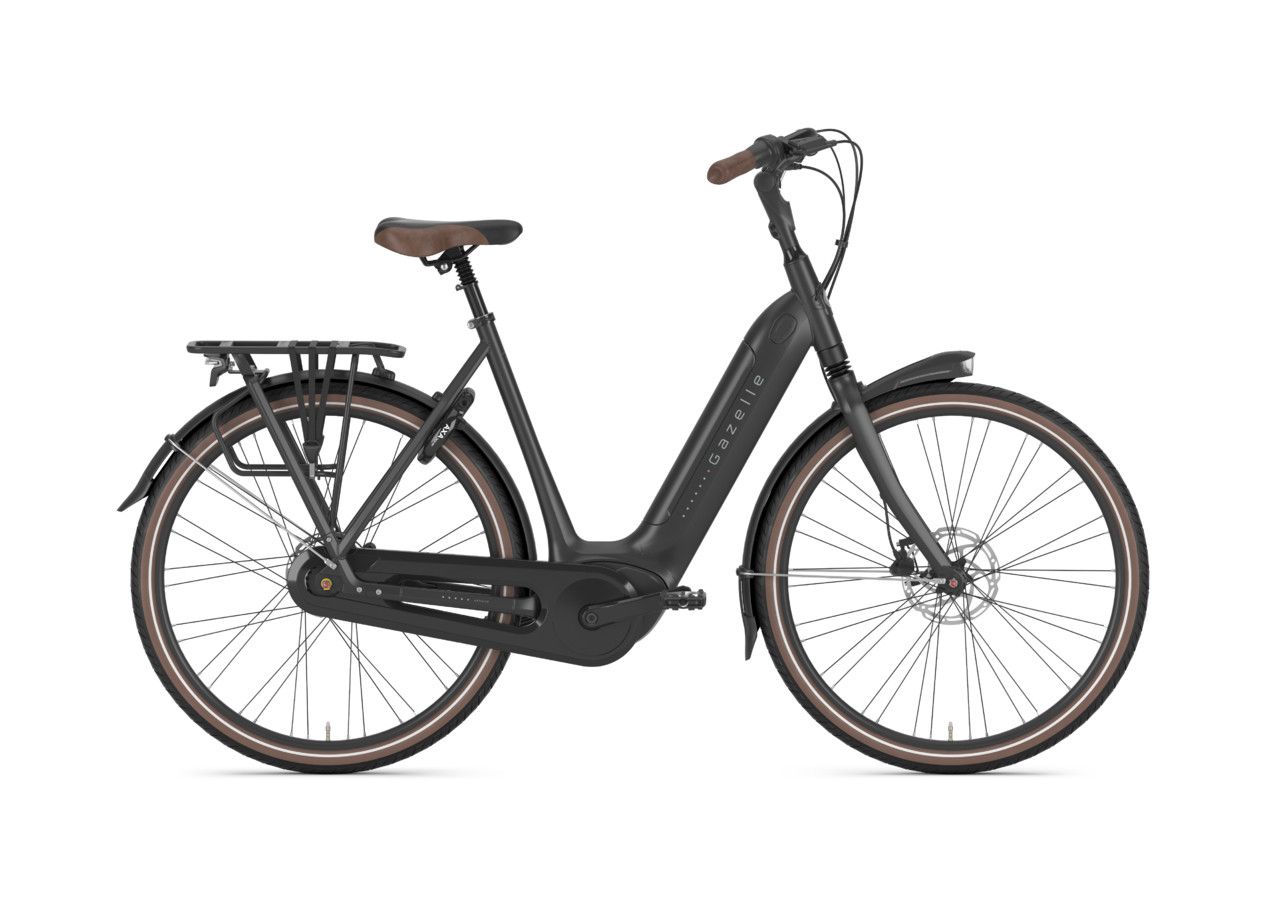

Gazelle Arroyo C8 HMB Elite

Frame/front fork

• Frame: Stable, lightweight hydro-formed aluminium

frame with 68.5° headset angle and 69.5° saddle

tube angle for relaxed and comfortable riding. This is

a low-step and spacious frame, single tube and lovely

integrated cables.

• Sitting position: Upright

• Fork: Aluminium, springing in headset, lightweight

• Travel fork: 30 mm

• Chain case: Plastic

• Rear carrier: Aluminum MIK HD system carrier

Wheels/tires

• Tires: Schwalbe Energizer Active Plus, 47-622

• Tires puncture resistant: Yes

• Rims: RODI Viper

• Front hub: Shimano

• Rear hub: Shimano Nexus, 8 speeds, freewheel

• Spokes: Stainless steel, extra strong

• Fender: Plastic

Steering

• Handlebar: Aluminium, comfort curved model

• Stem: Gazelle Switch, manually steplessly adjustable

• Steer grip: Luxury leather handlebar grips for a

sophisticated feel and extra comfort

• Grip type: Gazelle Aero leather

• Brake lever: Tektro

• Bell: Gazelle rotary bell

Transmission/brake

• Brake system back: Disc brake with hydraulic control;

Tektro HD-T280, 2 piston

• Brake system front: Disc brake with hydraulic control;

Tektro HD-T280, 2 piston

• Gear system: 8-speed Shimano Nexus

• Shifter: Shimano Nexus 8

• Crank: Aluminum

• Front chainwheel: 38

• Rear chainwheel: 18

• Drivetrain: Chain

• Chain: KMC extra strong, special for e-bike

Saddle

• Seatpost: Sprung

• Saddle: Selle Royal Loire

Lighting

• Lights front: Gazelle Fendervision, LED headlamp, on/

off switching via display

• Front light lux: 50

• Front light powersource: Battery

• Light back: Spanninga Brasa, LED battery supply, on/

off switching via display

• Rear light powersource: Battery

Other

• Lock type: AXA Defender, Ring lock with an option for

a plug-in cable to attach your bike to a fixed object

for extra protection against theft

• Lock safety level: ART ** certified

• Kickstand: drop-down rear stand, Ursus Mooi

System

• Ebike system: Bosch

• Display: Bosch Purion LCD

• Display detachable: No

• Controlled on handle: Yes

• Sensors: rotation sensor; speed sensor; pedal force

sensor

• Engine: Bosch Active Line Plus (50Nm), 36V

• Battery: Low-step, Integrated into frame

• Charger: 4 Ah

• Battery: 500 Wh
