Name: 2024-2025 Trek Checkpoint ALR 5 AXS -
Brand: TREK
SKU: 5133_sku_main
Price: 3599.99 CAD
Availability: InStock

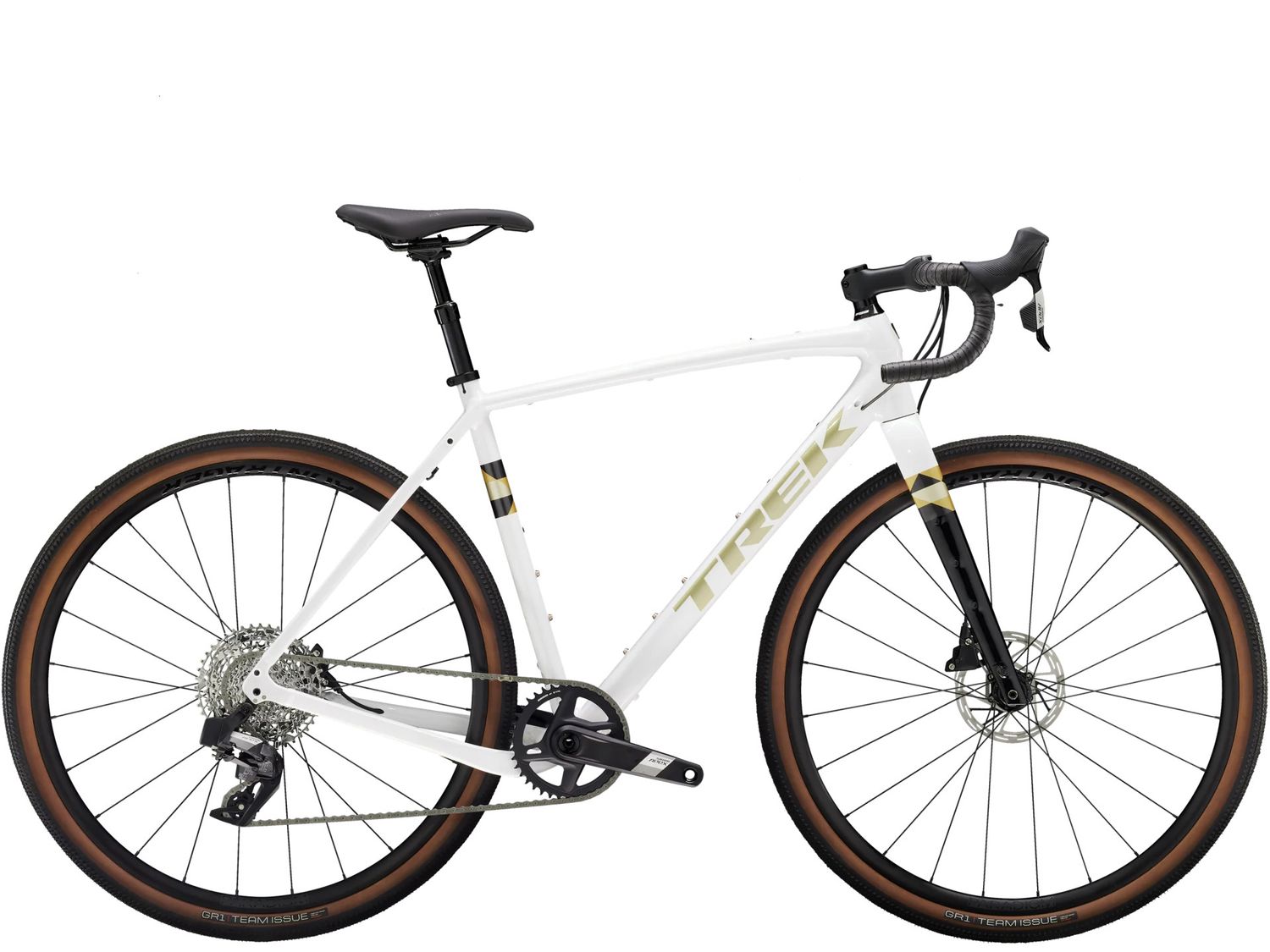

2024-2025 Trek Checkpoint ALR 5 AXS -

Product Details

Brand: TREK

UPC: 768682510063

Weight	56 - 9.86 kg / 21.74 lbs (with TLR sealant, no tubes)
Weight limit	This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 275 pounds (125 kg).

*Shifter	Size: 49, 52, 54, 56, 58, 61 SRAM Apex, 12 speed
Size: 49, 52, 54, 56, 58, 61 SRAM Apex AXS, 12 speed
Rear derailleur	SRAM Apex XPLR eTap AXS, 44T max cog
*Crank	Size: 49 SRAM Apex 1, 40T, DUB Wide, 165mm length
Size: 52 SRAM Apex 1, 40T, DUB Wide, 170mm length
Size: 54, 56 SRAM Apex 1, 40T, DUB Wide, 172.5mm length
Size: 58, 61 SRAM Apex 1, 40T, DUB Wide, 175mm length
Bottom bracket	SRAM DUB, T47 threaded, internal bearing
Cassette	SRAM XPLR PG-1231, 11-44, 12 speed
Chain	SRAM Apex, 12 speed
Max chainring size	1x: 44T (SRAM), 50T (Shimano), 2x: 50/34

Hub front	Bontrager alloy, sealed bearing, centerlock disc, 100x12mm thru axle
Skewer front	Bontrager Switch thru axle, removable lever
Hub rear	Bontrager alloy, sealed bearing, CenterLock disc, Shimano 11-speed freehub, 142x12 mm thru axle
Skewer rear	Bontrager Switch thru axle, removable lever
Rim	Bontrager Paradigm, Tubeless Ready, 24-hole, 21mm width, Presta valve
Spokes	14g stainless steel, black
Tire	Bontrager GR1 Team Issue, Tubeless Ready, Inner Strength casing, aramid bead, 120 tpi, 700x40mm
Tire part	Bontrager TLR sealant, 180 ml/6 oz
Rim strip	Bontrager TLR
Max tire size	See service manual

*Saddle	Size: 49, 52 Bontrager P3 Verse Comp, steel rails, 155 mm width
Size: 54, 56, 58, 61 Bontrager P3 Verse Comp, steel rails, 145 mm width
Seatpost	Easton EA70 AX, 27.2mm, 0mm offset, 50mm travel
*Handlebar	Size: 49 Bontrager Elite Gravel, 38cm width
Size: 52 Bontrager Elite Gravel, 40cm width
Size: 54, 56 Bontrager Elite Gravel, 42cm width
Size: 58, 61 Bontrager Elite Gravel, 44cm width
Handlebar tape	Bontrager Supertack Perf tape
*Stem	Size: 49 Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 70 mm length
Size: 52, 54 Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 80 mm length
Size: 56, 58 Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 90 mm length
Size: 61 Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 100 mm length
Brake	SRAM Apex hydraulic disc, flat mount
Brake rotor	SRAM Paceline, rounded, centerlock, 160mm

Frame with Fork	300 Series Alpha Aluminum, tapered head tube, Internal cable routing, 3S chain keeper, T47 BB, rack and fender mounts, integrated frame bag mounts, flat mount disc, 142x12mm thru axle
Fork	Checkpoint, full carbon, tapered carbon steerer, rack mounts, mudguard mounts, flat-mount disc, 12x100 mm thru axle
